7563 Truck Scale

“Contact us” for pricing!

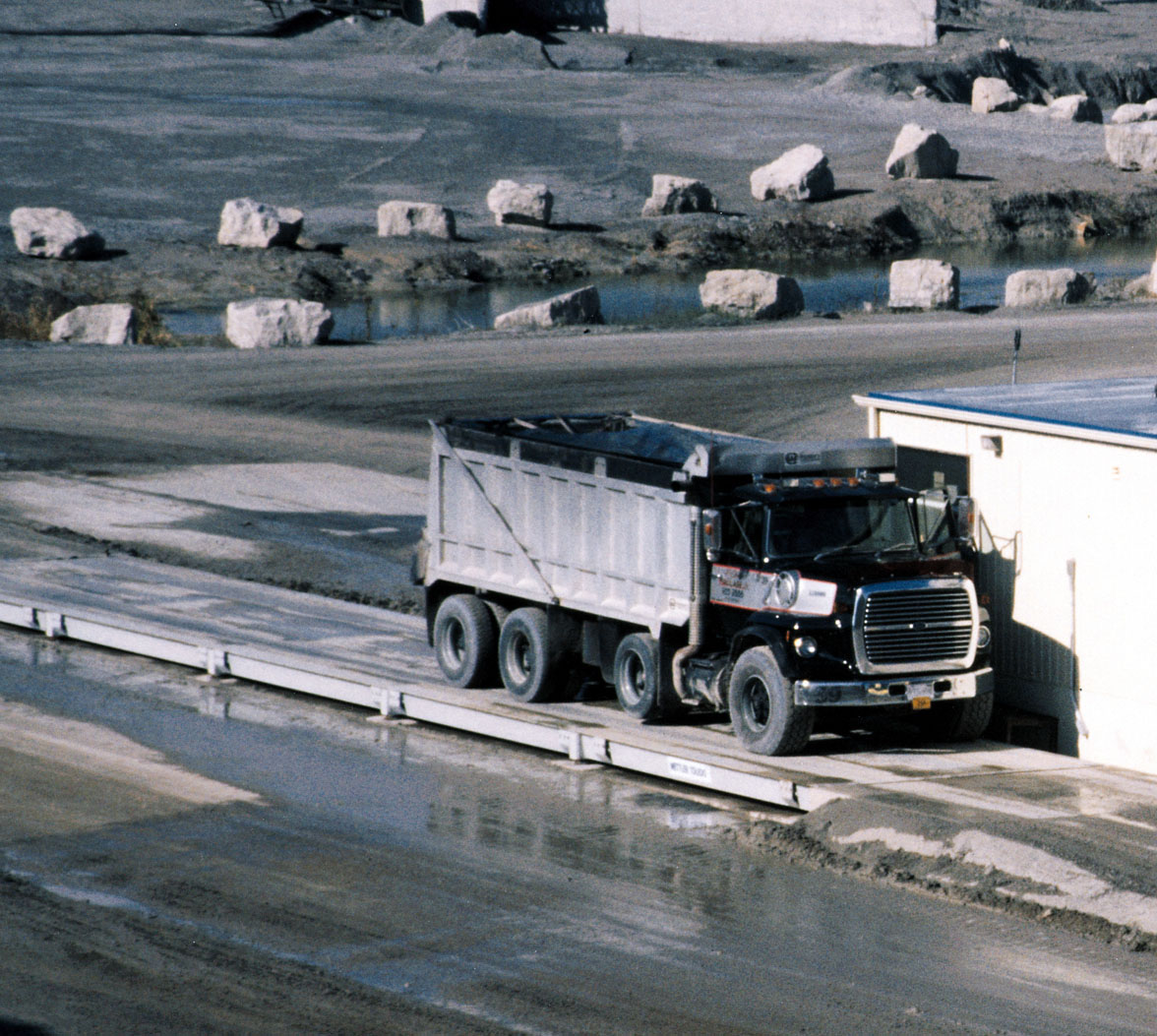

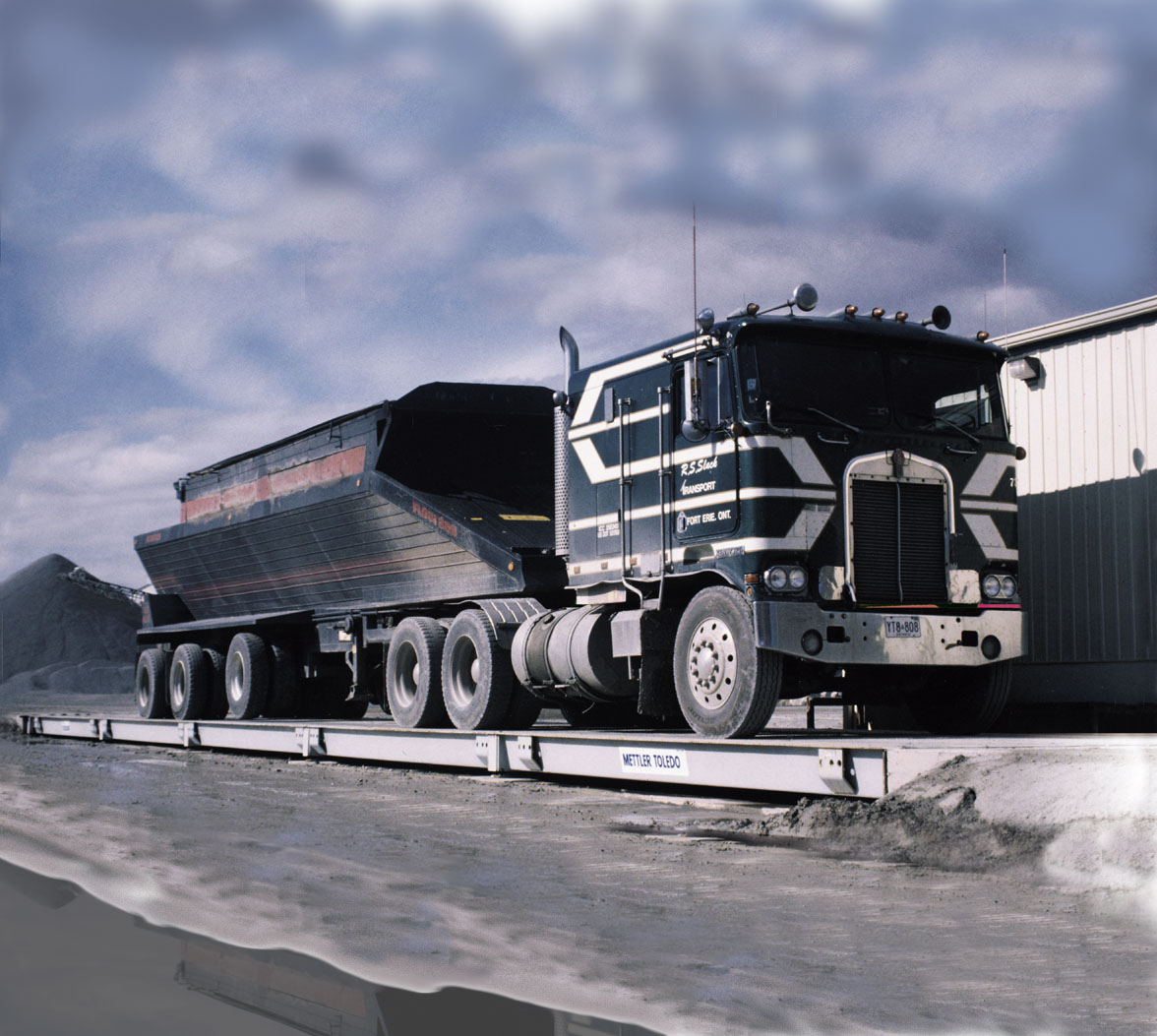

The METTLER TOLEDO 7563 truck scale is a steel deck scale for weighing over-the-road legal trucks and certain off-road vehicles. The design is flexible and can be tailored to match your specific application requirements. The orthotropic design provides reliable weighing over a long service life, while POWERCELL® load cells transmit an extremely powerful signal for accurate, dependable weighing. In addition, the steel deck design is ideal for operations that need their scale up and running quickly.

  Ex Approval logoFM Approved logoImage of ntep approval icon

Description

Specifications – METTLER TOLEDO 7563 Truck scale

7563 truck scale





Specifications
Deck Plate Thickness 5/16 in (8 mm)
End Plate Thickness 3/4 in (19 mm)
Rib Thickness Outside: 3/8 in (10 mm), Others: 1/4 in (6 mm)
Number of Ribs 7
Rib Heights 9-5/8, 11, 13-3/8 in (244, 279, 340 mm)
Scale Widths* ft 9 in, 9 ft 11 in, 10 ft, 11 ft, 11 ft 10 in, 14 ft,

ft (2.97, 3, 3.04, 3.3, 3.6, 4.2 4.8 m)

Scale Lengths to 140 ft (4.6 to 42.7 m)
Profile in (432 mm)
Module Lengths 15, 17.5, 20 ft (4.6, 5.3, 6.1 m)
Foundation Types Variable Footer, Beam Slab, Pit
Design Trucks (Side-by-

Side)

CAT 773, Euclid R50
Capacity (Single Width) 120,000 lb (scale lengths < 20 ft)

200,000 lb (scale lengths > 20 ft)

Capacity (Side-by-Side) 240,000 lb (scale lengths < 20 ft)

400,000 lb (scale lengths > 20 ft)

eMin lb (10 kg)
nMax 10,000 divisions
Concentrated Load Capacity

(Single Width)

100,000 lb (36,287 kg)
Concentrated Load Capacity

(Side-by-Side)

100,000 lb (36,287 kg) per side
NTEP Certificate 96-092A5
