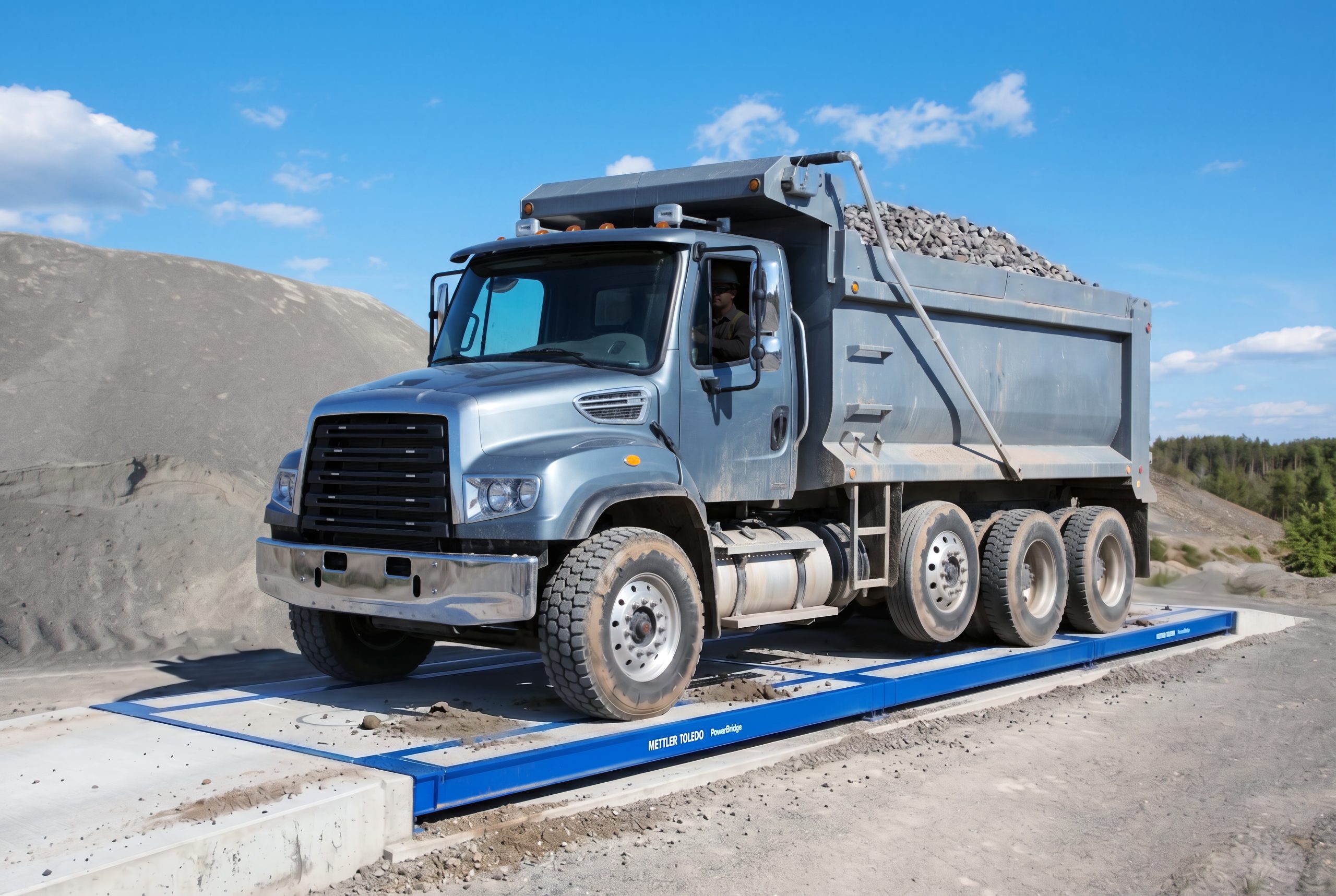

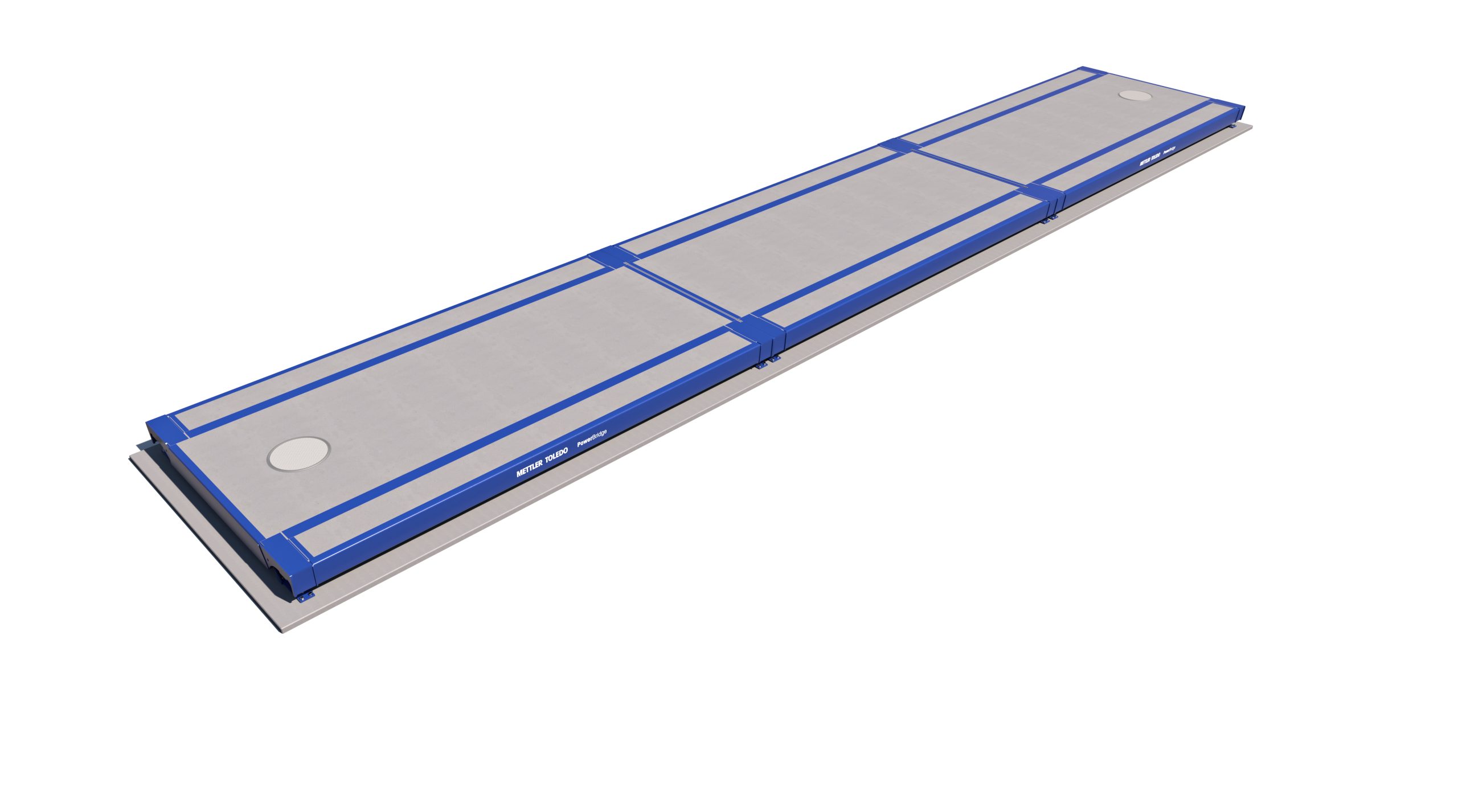

The METTLER TOLEDO VTC250 concrete deck truck scale is an exceptionally durable weighbridge that delivers years of reliable service. It features a 10-inch-thick concrete driving surface reinforced by a robust steel understructure. This true composite design effectively combines the superior compressive strength of concrete with the high tensile strength of steel. By positioning strength guides directly under the tire path, we put the strongest structural components exactly where the greatest strength is needed. A system of angled ribs positioned between the strength guides increases durability by providing additional shear transfer to the weighbridge. These simple design innovations enable us to offer you a superior truck scale that is designed to last.
This rugged and highly reliable truck scale is backed by the Industry’s finest service network and most powerful 5-year load cell system and 10-year weighbridge warranty!
Description
METTLER TOLEDO VTC250 Concrete Deck Truck Scale Specifications
Specifications | |
Concrete Thickness | 10 in (254 mm) |
Scale Widths | 9 ft-10 in, 10 ft, 11 ft, 12 ft (3, 3.3, 3.7 m) |
Scale Lengths | 10 to 140 ft (3 to 42.7 m) |
Profile | 14.5 in (368 mm) |
Module Lengths | 10 ft, 15 ft, 17 ft-6 in, 20 ft, 23 ft-4 in (3, 4.6, 5.3, 6.1, 7.1 m) |
Usage | 100,000 trucks per year (average 400 trucks per day) |
Capacity* | 120,000 lb (scale lengths < 23 ft-4 in) 200,000 lb (scale lengths > 23 ft-4 in) |
Foundation Types | Variable Footer, Full Slab, or Pit |
eMin | 20 lb (10 kg) single range |
nMax | 10,000 divisions |
NTEP Handbook 44 Tested: Concentrated Load Capacity | 120,000 lb (54,431 kg) |
NTEP Certificate | 19-149 |
Features | Benefits |
StrikeShield™ Lightning Protection | Prevents lightning damage to load cells and other equipment. |
International Intergard® Finish | Protect steel against corrosion even in the harshest environments. |
30t POWERCELL® GDD® Load Cells | Digital technology provides accurate vehicle weighing. |
Top Access to Load Cells | Makes it easy to perform inspections and maintenance. |
Scale Terminal | Full-featured terminal for inbound/outbound weighing and filling operations. |
