VTS100 Truck Scale

“Contact us” for pricing!

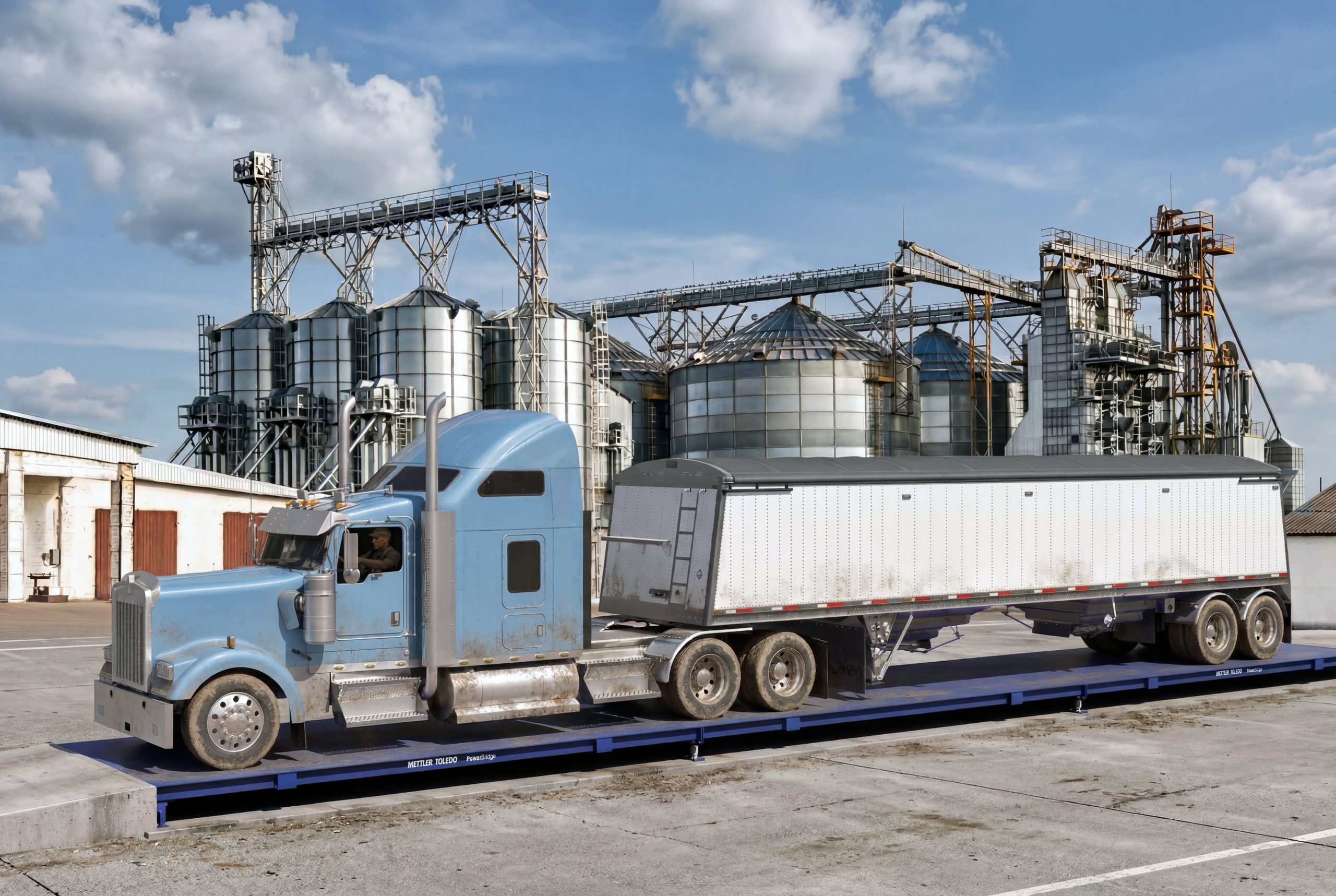

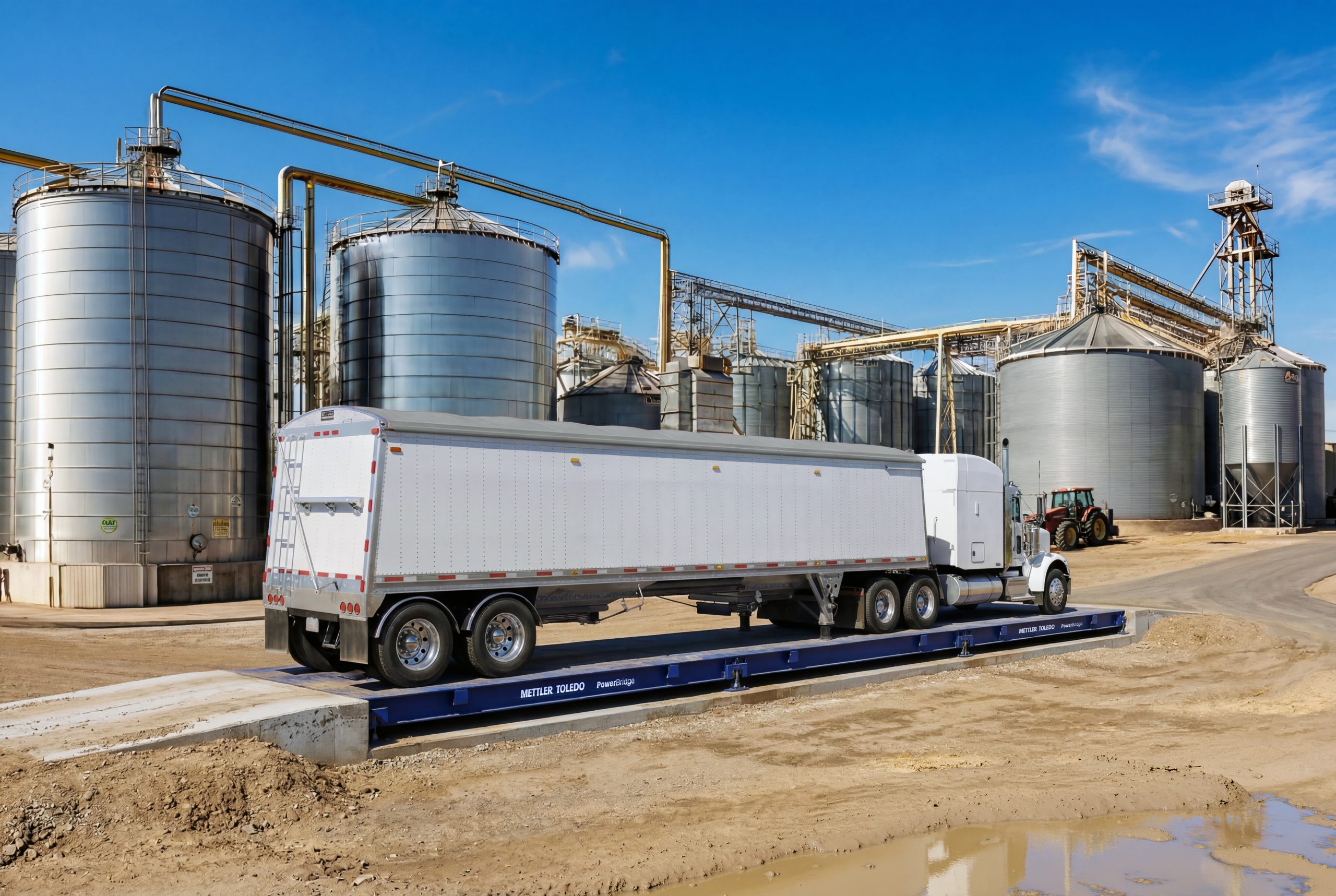

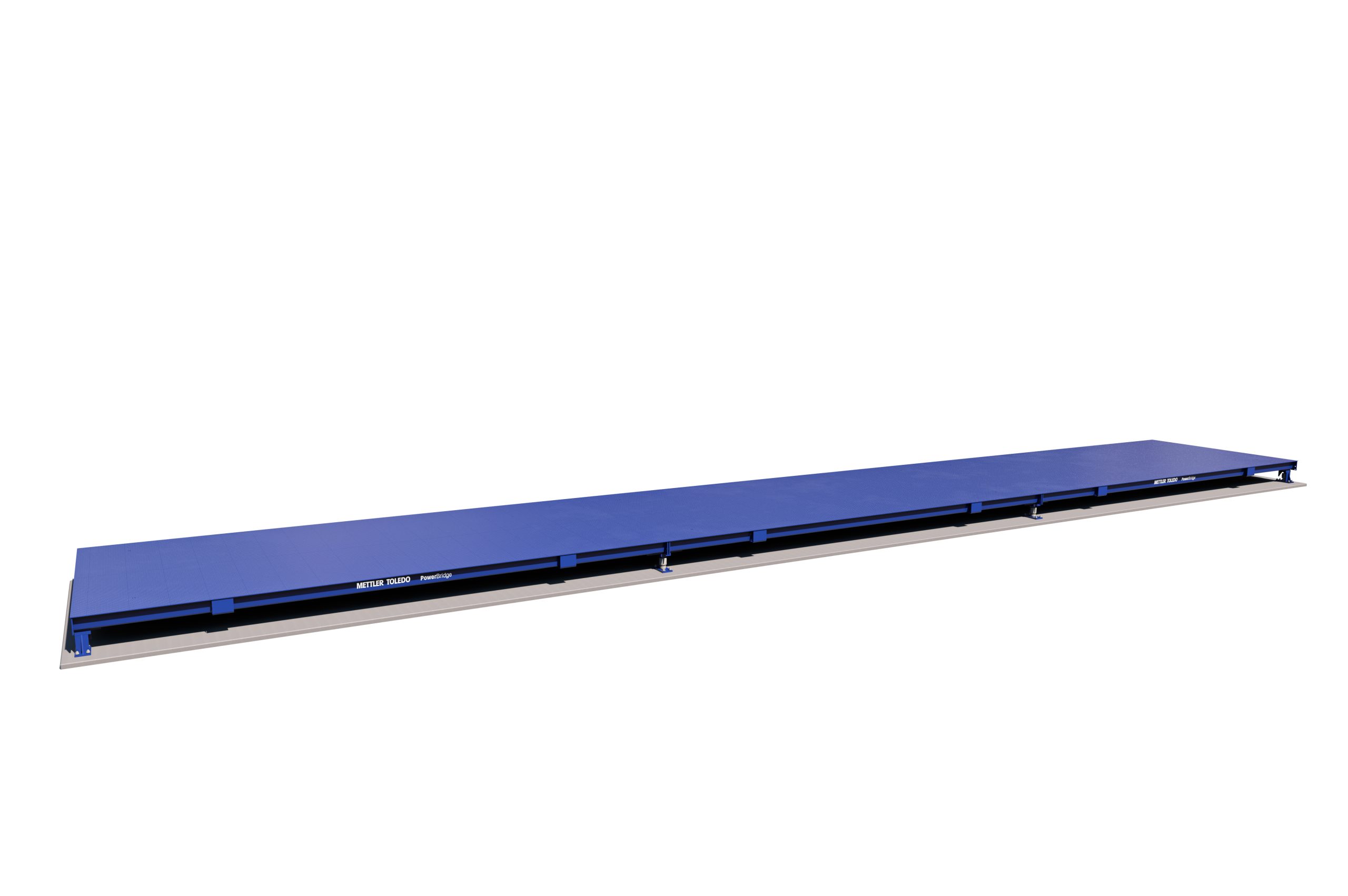

Model VTS100 is a steel deck truck scale that delivers proven performance at an affordable price. It consists of a steel deck supported by orthotropic ribs that are completely sealed from the elements by automated, continuous welds. By pressure testing every rib, we ensure an airtight seal that eliminates the potential for rusting from inside, unlike scale designs that sandwich beams between top and bottom plates using intermittent welds. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. As a result, you get a weighbridge capable of handling legal over-the-road traffic throughout a long service life.

Description

Specifications – METTLER TOLEDO VTS100 Truck Scale

METTLER TOLEDO VTS100 truck scale data brief link





Specifications

Deck Plate Thickness 5/16 in (8 mm)
Scale Widths  9 ft-10 in, 11 ft (3, 3.3 m)
Scale Lengths 10 to 140 ft (3 to 42.7 m)
Profile 17 in (432 mm)
Module Lengths 10 ft, 15 ft, 17 ft-6 in, 20 ft, 23 ft-4 in

(3, 4.6, 5.3, 6.1, 7.1 m)

Steel Type ASTM A-36
Capacity*  90,000 lb (scale lengths < 23 ft-4 in)

150,000 lb (scale lengths > 23 ft-4 in < 60 ft)

200,000 lb (scale lengths > 60 ft)

Foundation Types Variable Footer, Beam Slab, Deep Pit, or Temporary Frame
eMin 20 lb (10 kg)
nMax 10,000 divisions
Concentrated Load Capacity  80,000 lb (36,287 kg)
NTEP Certificate 01-070A4

*Note: 200,000 lb is the maximum gross capacity that any truck scale can have and still maintain 20-lb increments in legal-for-trade applications.



Features Benefits
Orthotropic Ribs Safe, robust, and reliable design provides a long service life.
International Intergard® Finish Protects steel against corrosion even in the harshest environments.
30t POWERCELL® GDD Load Cells Digital technology provides accurate vehicle weighing.
Steel Deck Enables you to start weighing immediately after scale installation.
