VTS231 Truck Scale

Notice:This product is restricted to logged in users with appropriate permissions

“Contact us” for pricing!

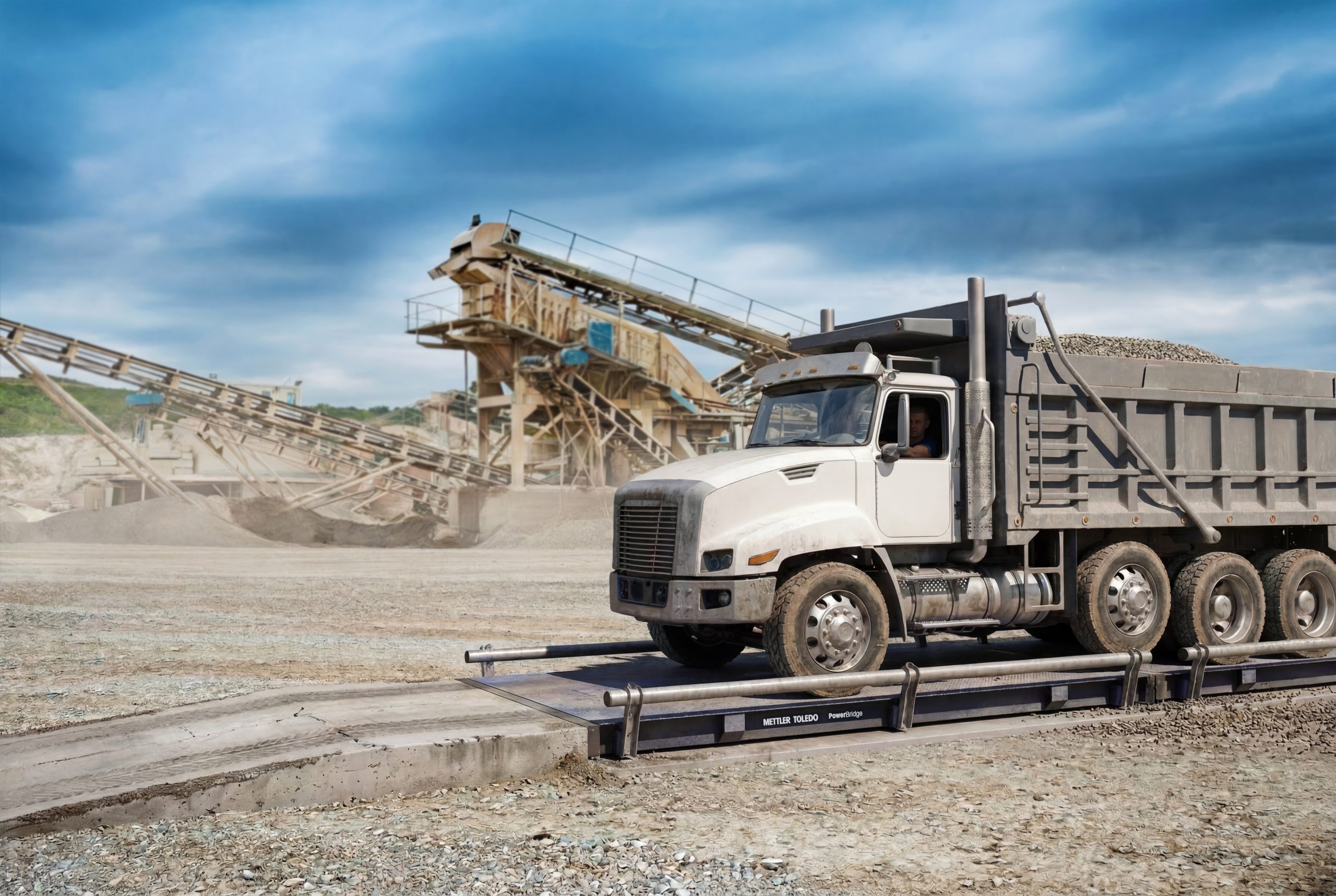

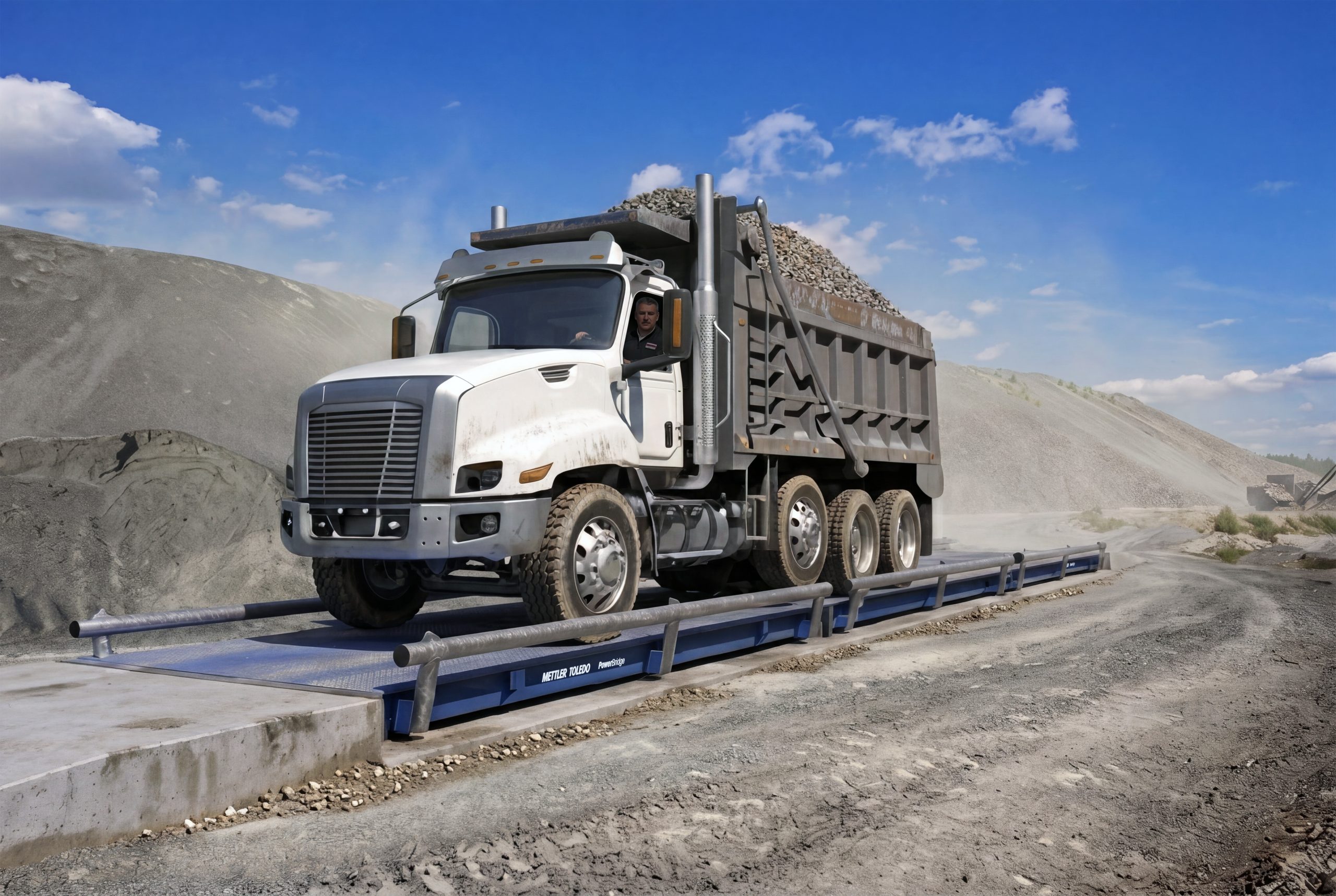

The VTS231 truck scale sets the industry standard for steel deck truck scales and is the ideal choice for a wide variety of vehicle weighing applications. The steel deck is supported by orthotropic ribs that are completely sealed from the elements by automated, continuous welds. By pressure testing every rib, we ensure an airtight seal that eliminates the potential for rusting from the inside, unlike scale designs that sandwich beams between top and bottom plates using intermittent welds. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL® PDX® load cells, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments and toughest applications.

Description

Specifications – METTLER TOLEDO VTS231 Truck scale

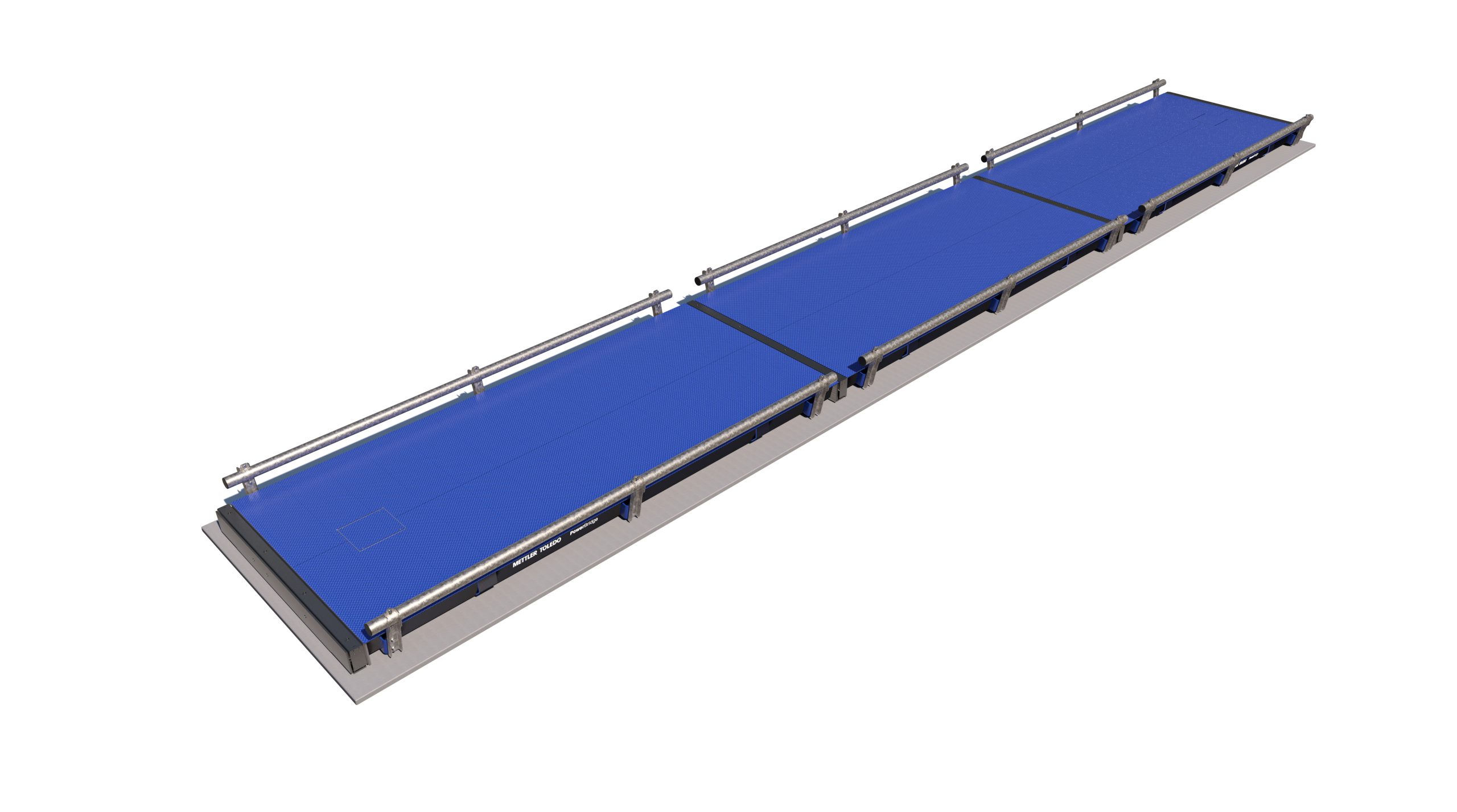

METTLER TOLEDO VTS231 truck scale

Specifications
Deck Plate Thickness 5/16 in (8 mm)
Scale Widths 9 ft-10 in, 10           , 11          , 11 ft-10 in                (3.3 m)
Scale Lengths 10 to 140 ft (3 to 42.7 m)
Profile 14.5 in (368 mm), 1/4-inch shims nominal
Module Lengths 10 ft, 15 ft, 17 ft-6 in, 20 ft, 23 ft-4 in

(3, 4.6, 5.3, 6.1, 7.1 m)

Steel Type ASTM A-36
Capacity* 150,000 lb (scale lengths < 23 ft-4 in)

200,000 lb (scale lengths > 23 ft-4 in)

Foundation Types Variable Footer, Beam Slab, Shallow Pit, Deep Pit, or Temporary Frame
eMin 20 lb (10 kg)
nMax 10,000 divisions
Concentrated Load Capacity 100,000 lb (45,350 kg)
NTEP Certificate 93-108A6

*Note: 200,000 lb is the maximum gross capacity that any truck scale can have and still maintain 20-lb increments in legal-for-trade applications.

Features Benefits
50t POWERCELL® PDX® Load Cells Stainless steel load cells provide highest accuracy and reliability (IP68/IP69K).
POWERCELL PDX Network Eliminates junction boxes and monitors network health.
StrikeShield™ Lightning Protection Protects your system from lightning damage.
International Intergard® Finish Protects steel against corrosion even in the harshest environments.
Top Access to Load Cells Makes it easy to perform inspections and maintenance.
Orthotropic Ribs Safe, robust, and reliable design provides a long service life.
Steel Deck Enables you to start weighing immediately after scale installation.
