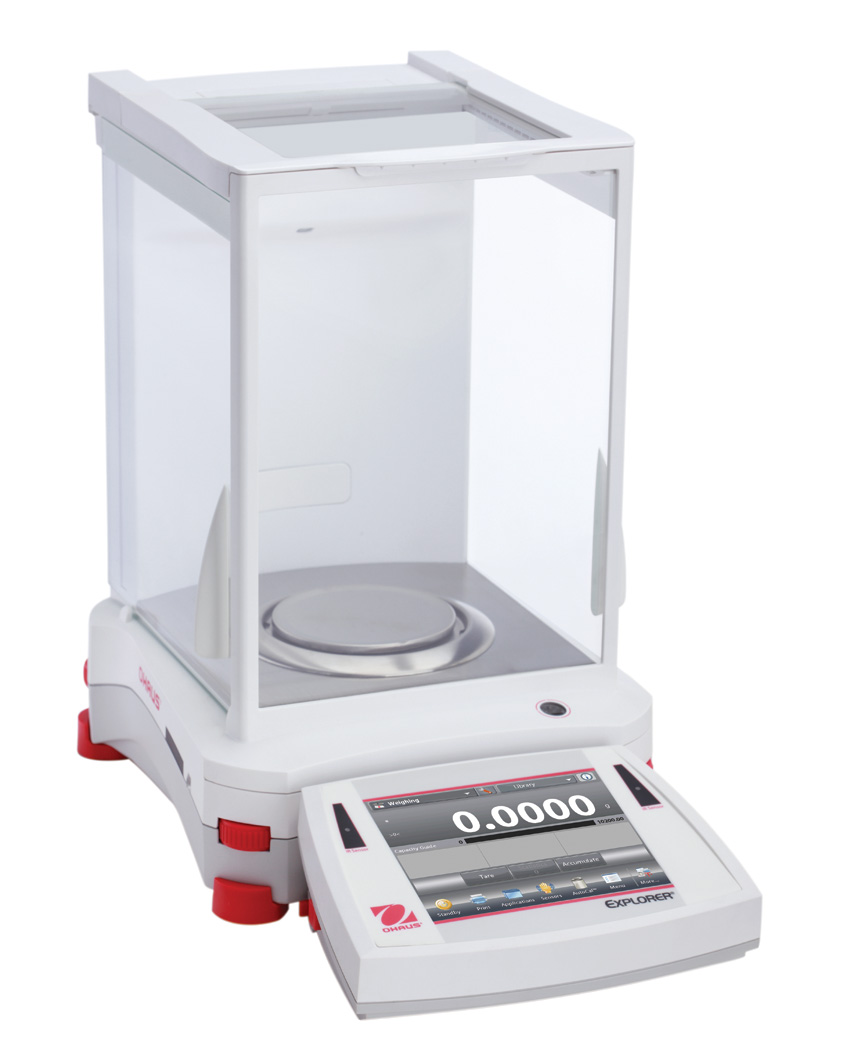

OHAUS Explorer Analytical Balance

Intelligent Performance No Matter How Difficult the Task!

The OHAUS Explorer features SmarText™ 2.0, our user-friendly application-based graphical software platform in concert with a redesigned antistatic draftshield, enhanced weighing performance, and a flexible modular display that detaches from the weighing base. Ingeniously striking a balance between cutting-edge technology and functional design, the Explorer delivers accurate performance that will improve your efficiency in the lab

Explorer offers optimized linearity and repeatability specifications, enhanced vibration filtering for better balance stability, as well as AutoCal™ automatic internal calibration to improve accuracy.

A large color touch-screen display, icon-driven application software that features 14 unique application modes, and an adjustable angle display make Explorer the most advanced balance in its class.

Explorer’s modular design features a color touch display that can be separated from the weighing base for ultimate flexibility in any workspace

Description

Specifications – Explorer Analytical Balance

explorer analytical balance data brief link

Specifications

Weighing units g, kg, carats (ct), grains (gn), lb, oz , Troy Oz (ozt), Newton (N), Pennyweights (dwt), Taels (Hong Kong, Singapore and Taiwan), Momme, Mesghal, Tical, Baht and up to 3 user-defined Custom Units
Weighing modes Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC
Keyboard Resistive touch screen with virtual QWERTY and numeric keypads
Calibration AutoCal™ (with automatic calibration on 1.5ºC temperature change or every 11 hours) and external calibration
Display 5.7″ (145mm) diagonal TFT high resolution color VGA resistive touchscreen display with SmarText 2.0™
Interface Bi-directional RS232 and USB ports included, third port (RS232 or Ethernet) optional.
Data/File storage and transfer capability Library with up to 5MB of user application data, Data Transfer Function to Microsoft Excel included
Tare range To capacity by subtraction
Stabilization time (seconds) <=2 seconds
Auto Zero Tracking User selectable 0.5, 1 or 3d, Off
Operating Temperature Range 50°F to 86°F (10°C to 30°C)
Operating Humidity Range 15% to 80% at 31°C decreasing linearly to 50% at 40°C, non-condensing
AC adapter power requirements 100-240 VAC 0.6A 50-60Hz AC adapter
Tare range To capacity by subtraction
Dimensions WxHxD (in/cm) 9.1W x 13.8H x 15.5D in/ 230W x 350H x 393D mm
Pan size (in/mm) 3.5 in / 90mm Ø round
Draftshield 9.9 in / 252 mm draftshield with anti-static glass, flip top, frameless bearing-mounted 6.3 x 9.4 in / 160 x 240mm side entry doors and draftshield chamber light
Net Wt. (lb/kg) 15.2lb / 6.9kg
Storage temperature -14ºF (-10ºC) to 140ºF (60ºC) at 10% to 90% relative humidity, non-condensing
Shipping dimensions (WxDxH) (in/cm) 21.66L x 15.16W x 21.19H in / 55L x 38.5W x 53.8H cm
Shipping Wt. (lb/kg) 21.1lb / 9.6kg
Accessories Tower Mount for display, 6.6ft / 2m display extension cable, density determination kit, security device, USB interface cable, second RS232 option, Ethernet option, foot switch kit, 9 and 25-pin RS232 cables, compact thermal printer, compact dot matrix printer
