VTS101 Truck Scale

Notice:This product is restricted to logged in users with appropriate permissions

“Contact us” for pricing!

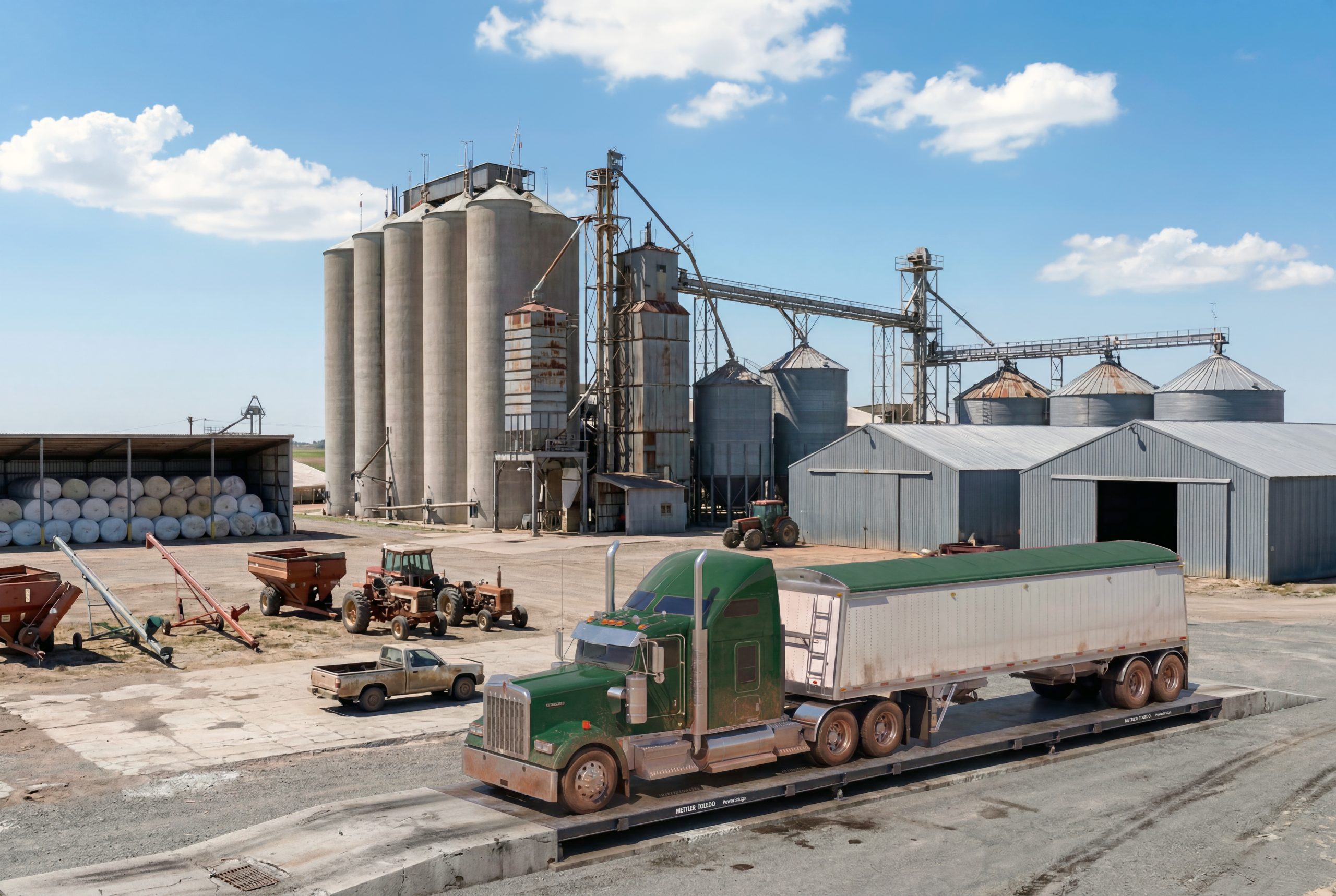

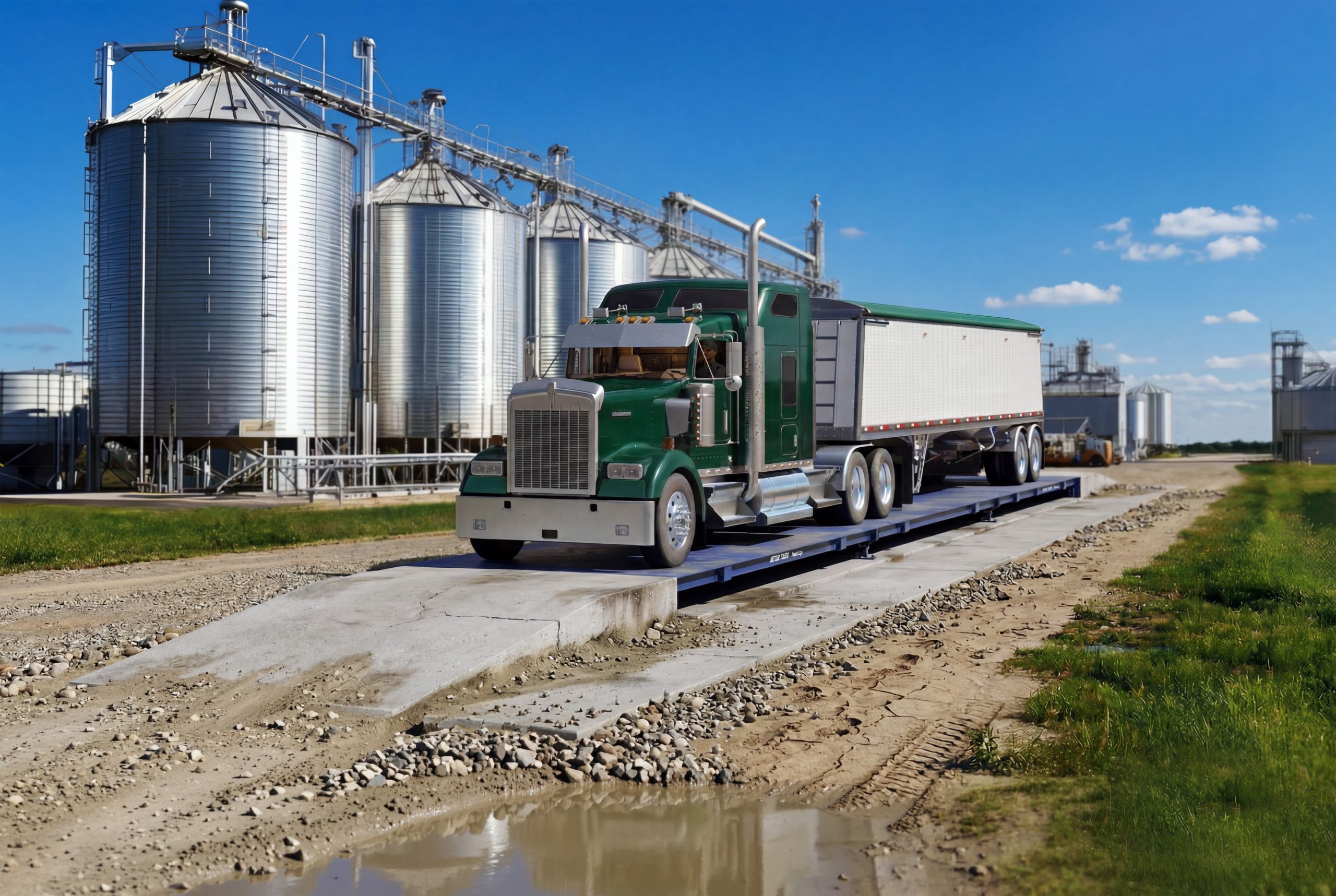

The METTLER TOLEDO VTS101 truck scale is a steel deck truck scale with POWERCELL® PDX® technology added as a standard feature. It consists of a steel deck supported by orthotropic ribs that are completely sealed from the elements by continuous, automated welds. By pressure testing every rib, we ensure an airtight seal that eliminates the potential for rusting from inside, unlike scale designs that sandwich beams between top and bottom plates using intermittent welds. The ribs are shaped to distribute concentrated loads better than I-beam designs, leading to a longer life for your scale. As a result, you get a weighbridge capable of handling legal over-the-road traffic throughout a long service life. By combining the strength of an orthotropic weighbridge with the reliability of POWERCELL load cells, this truck scale ensures that you will get years of trouble-free weighing even in the harshest environments.

Description

Specifications – METTLER TOLEDO VTS101 Truck Scale

METTLER TOLEDO VTS101 truck scale



Specifications
Deck Plate Thickness 5/16 in (8 mm)
Scale Widths 9 ft-10 in, 11 ft (3, 3.3 m)
Scale Lengths 10 to 140 ft (3 to 42.7 m)
Profile 17 in (432 mm)
Module Lengths 10 ft, 15 ft, 17 ft-6 in, 20 ft, 23 ft-4 in

(3, 4.6, 5.3, 6.1, 7.1 m)

Usage 50,000 trucks per year

(average 200 trucks per day)

Capacity*   90,000 lb (scale lengths < 23 ft-4 in)

150,000 lb (scale lengths > 23 ft-4 in < 60 ft)

200,000 lb (scale lengths > 60 ft)

Foundation Types Variable Footer, Beam Slab, Deep Pit, or Temporary Frame
eMin 20 lb (10 kg)
nMax 10,000 divisions
NTEP Handbook 44 Tested:

Concentrated Load Capacity

80,000 lb (36,287 kg)
NTEP Certificate 01-070A4

*Note: 200,000 lb is the maximum gross capacity that any truck scale can have and still maintain 20-lb increments in legal-for-trade applications.

Features Benefits
50t POWERCELL® PDX® Load Cells Stainless steel load cells provide highest accuracy and reliability (IP68/IP69K).
POWERCELL PDX Network Eliminates junction boxes and monitors network health.
StrikeShield™ Lightning Protection Protects your system from lightning damage.
International Intergard® Finish Protects steel against corrosion even in the harshest environments.
Orthotropic Ribs Safe, robust, and reliable design provides a long service life.
Steel Deck Enables you to start weighing immediately after scale installation.
